PP Yarn String Wound Filter Cartridge Making Machine
We supply auto control PP yarn string wound filter cartridge making machine for water filtration. We devoted ourselves to filter making machine industry many years,covering most of Europe and the Americas market. We are expecting become your long team partner in China.
Brand Name: ANGE or Customized
Color: Blue or Customized
Shipping Port: Shanghai Port
Lead Time: About 1 Months
Min Order: 1 Set
Warranty: 12 Months
Description
Product Description

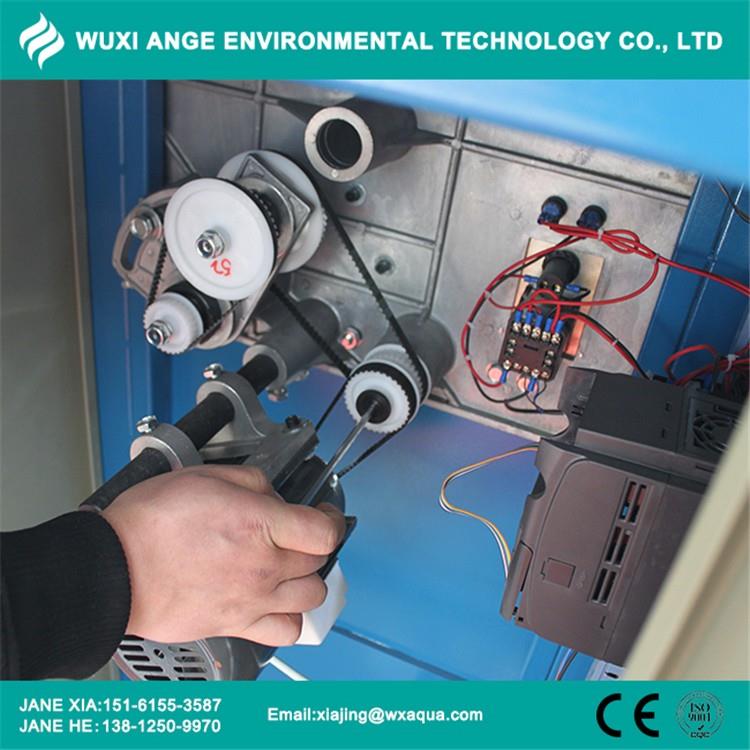

The auto control PP yarn string wound filter cartridge making machine is mainly used in the fields of water purification, beverage, food, chemical, grease, electronics, electroplating pharmacy, environmental protection and other industries. Wraps a variety of different requirements yarn, wire wound filter special molding machine. The winding machine has the advantages of high speed, good yarn forming, full line stop, fast line change and low energy consumption. The string wound filter cartridge making machine can simultaneously produce one or two sizes of wire-wound filter elements, referred to as single-head machines or double-head machines.
Main Specification
Machine Size | 10 inch | 20 inch | 30 inch | 40 inch | … |
Power | 180w | 250w | 370w | 370w | … |
Output (piece/hour) | 72 | 36 | 24 | 18 | … |
Speed ( r/min ) | 2880 | 2880 | 14400 | 14400 | … |
Filter Cartridge Length (mm) | 250-254 | 500-508 | 750-762 | 1000-1016 | … |
Winding Line Speed | 40-280m/min | ||||
Max Winding Diameter | 200mm ( other diameter is available ) | ||||
Voltage | 380/220V,50/60HZ (other voltage also available) | ||||
Frame Material | Polypropylene, stainless steel etc. | ||||
Raw Material | PP yarn, cotton etc. | ||||
Filter Precision | 0.5-100um | ||||
Filter Length | 5”-100”(other length also available) | ||||
Application
PP string wound filter cartridge mainly used in the fields of water purification, Beverage, foodstuff, chemical, greases, pharmacies, electronics, environmental protection etc, it’s a dedicated machine for the winding of different yarns. This machine features novel design, high speed, low noise, high productivity, and good yarn forming ability.
This machine has many advantage as such as easy operation; convenient and pick yarn change , low energy consumption. Our company produces single spindle and double spindle two types of pp string wound filter cartridge machine.
Our Certificates
FAQ
1. Where is your factory located?
A: Our factory address is :No. 18, Zhanhong Road, Hongshan Street, Houzhai, New District, Wuxi city, Jiangsu Province, China.
2. May i know which payment will be accepted by your company?
A: So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
3. How can i get the after-service?
A: If problems are caused by us, we will send spare parts for free.
If it is a human problem, we will also send spare parts, but will charge a fee. If you have any questions, you can call us directly or video chat.
4. Why choose us?
A: We are one of High-tech Enterprises. We are the manufacturer of general filter cartridge making machine, and obtained the certificate of CE.
