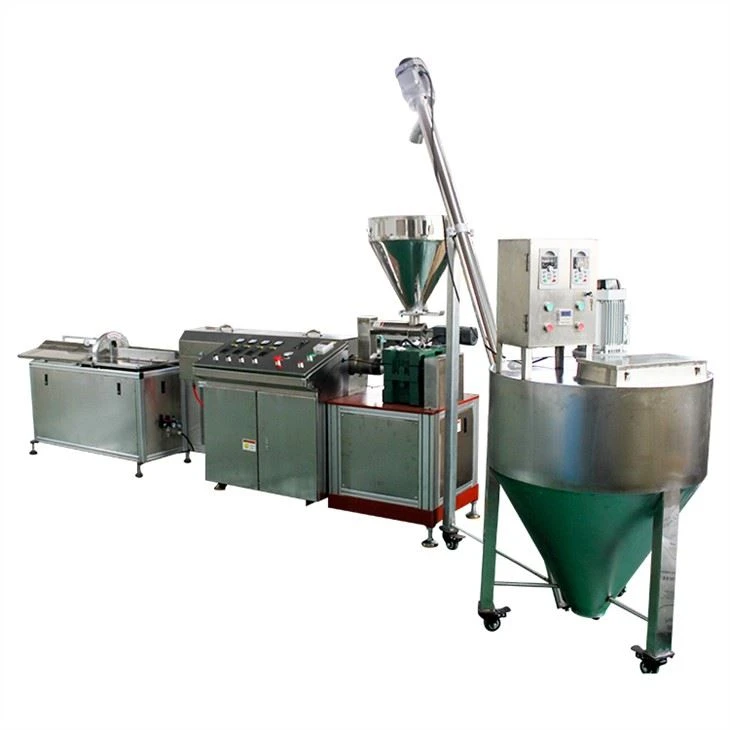

Cto Active Carbon Block Filter Cartridge Making

CTO active carbon block filter cartridge making ,from first to mix material carbon granules and adhesive powder, then will add mixed material to auto feeder, then will deliver material to extrude, use extruding and heating active carbon material and adhesive together, then extrude into carbon filter cartridge.

Send Inquiry

Description

CTO Active Carbon Block Filter Cartridge Making Introduction

Machine Features

Carbon filter cartridge machine technology date

1pc/min(base on 10*2.5inch)

(Can not use water cooling the carbon cartridge directly,this will wet the cartridge,easily mildew and pollution)

If necessary, we can add an alarm system to monitor the entire production line

Each part produced by famous company.ABB,OMRON,SCHNEIDER...

Voltage: 3P/380V/50Hz 1P/220V/50Hz

Rated power: 16.45KW

Actual power: 8kw

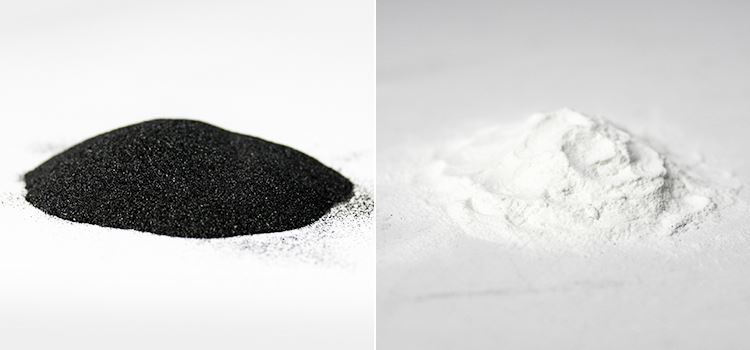

Raw material: Active Carbon(Granule) and PE Glue(Powder)

Active Carbon percentage is 88%-90%.the other is 10%-12%.

Inner diameter: 10mm-80mm(default 39 or 40mm)

Outer diameter: 20mm-120mm(default 62mm)

Length: 5’’,10’’,20’’,30’’,40’’.............100’’

Machine weight: 1Ton

Mark:One extruder just make one kind of inner diameter and outer diameter.If you want to do other diameter(≤65mm), need to replace barrel and screw,if diameter beyond 65mm,advise big extruder is better.

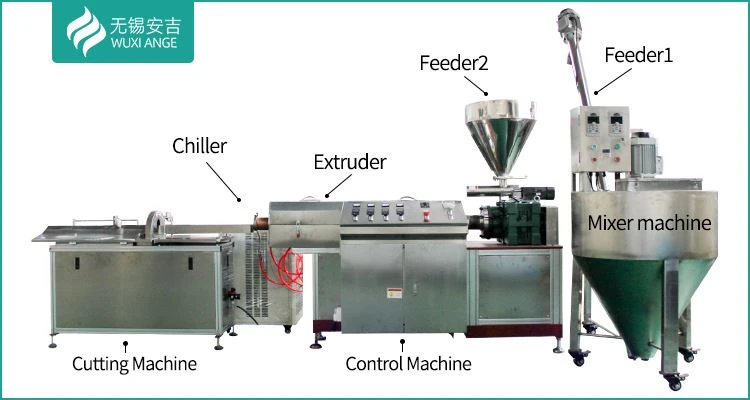

Carbon filter cartridge machine parts show

Application

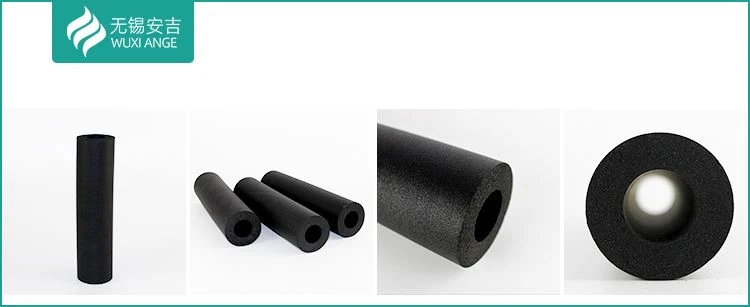

10-40inch carbon rod filters can be made, and the cutting length can be adjusted during the production process,Carbon Filters contain compressed coal or coconut shell activated carbon, this structure allows for prolonged contact with water, larger filtration area more can be revealed the higher adsorption capacity for odor, sediment, chlorine, taste, certain pesticides, solvents, aromatic hydrocarbons, fehnol, benzene and other organic compunds .

Delivery, Shipping And Service

We usually wrap it with plastic film, then pack it into plywood case and fix it in order to protect the machine during transportation.We supply machine one year warranty time, and will supply spare parts for you and technology support.
